Product introduction

Ink

High hardness antistatic ink

With the rapid development of panel technologies, the flat panel display technologies must be improved and integrated with other functions, therefore, the In-Cell/On-Cell display modules with IPS technologies which improve the wide view-angle color difference and integrated functions have come along.

The IPS LCD emphasizes a wide viewing angle, the electrodes are arranged side by side so that it can be easily interfered with by external noises. Therefore, a layer of anti-static coating as a noise barrier (Shielding layer) is needed on the rear side of the filter.

In view of this, TriSphere Innovation itself has developed a conductive polymer surface modification (functionalization) with organic-inorganic nanomaterials mixing technology. It has made the inorganic nanoparticles dispersed in conductive solvents evenly, a layer of nanoparticle coating is attached to the surface of the conductive polymer film after the coating and baking processes so that the stability, weather-resistance, and solvent test results of the ink are significantly upgraded, and it can meet the touch market demand fully.

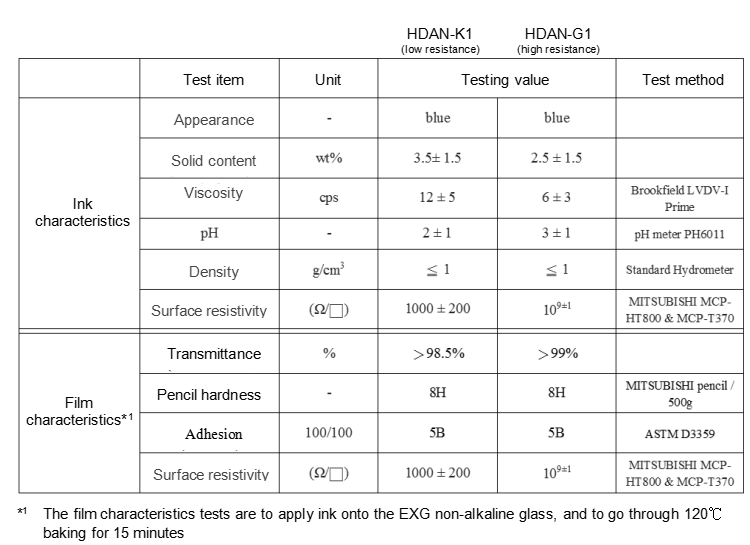

According to the requirements of matches concerning different structures and designs of LCD panels and different inks, TriSphere Innovation has developed high hardness conductive/antistatic inks for the LCD panel market. The products can be mainly divided into two types: (1) high hardness and high conductive ink: the surface resistance is of 500-3000 ohm/sq, used in LCD IPS-type electromagnetic shielding applications, the hardness is greater than 6H; (2) high hardness antistatic ink: surface resistance 106-1012ohm/sq, used in LCD in-cell touch surface static electricity dissipation, the hardness is of 6 - 9H.

Conductive polymer ink and anti-static ink

TriSphere Innovation’s main operation scope is based on the R&D and production of transparent conductive inks according to different ink demands from the markets. The functions have been improved to meet customer requirements, and different product developments have been made according to different demands.

1.Intelligent dimming film and antistatic coating solution. The intelligent dimming film puts a liquid crystal and polymer mixture between two transparent conductive polymer films. The liquid crystal droplet axis is disorderly arranged in the absence of an electric field effect that makes Mie scattering happen at the interface between light and the liquid crystal droplets and net-shaped polymers, and in turn appears in an opaque state. Under the effect of the electric field, the optical axis of the liquid crystal droplets is arranged in order, so that the light can penetrate the interface between the liquid crystal droplets and the network polymer, so as to show a transparent state. Please refer to figure 4-1.

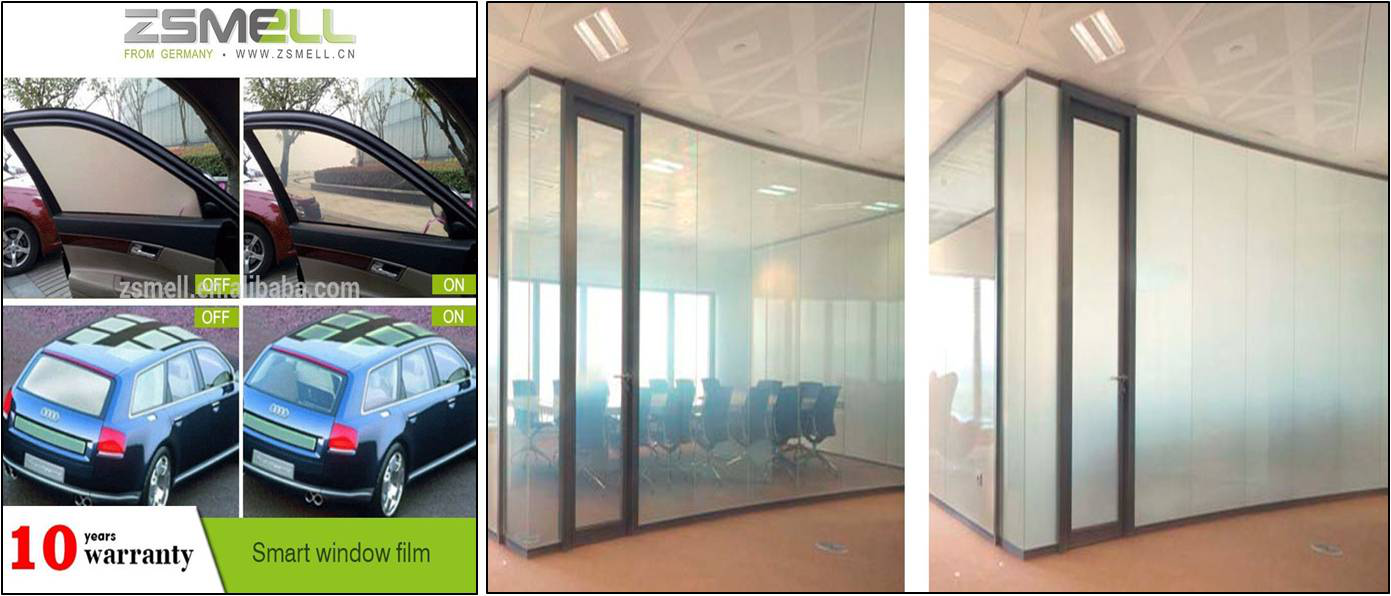

Figure 4.1 Application of transparent conductive polymer film in intelligent dimming film

Antistatic coating liquid is made of an anti-static material used in PET, PC and other plastic substrates. The end-customers are electronic packaging materials or IC tape and other special specification package material grades with a monthly demand of millions of tons. The resistance values range from 103 - 105ohm/sq to 106 - 108ohm/sq, or even 109 - 1011 ohm/sq according to customer specifications and different requirements.

TCT-LCD panel industry EMI (high resistance) and ITO (500 ~ 1000 ohm/sq): TriSphere Innovation has been leading the industry where it took the lead in developing high hardness conductive/antistatic ink which is mainly applied in LCD IPS-type electromagnetic shielding (101 - 104 ohm/sq) and LCD in-cell touch surface static-electricity dissipation (106 - 1012 ohm/sq). The high hardness conductive/antistatic polymer ink is also one of the targeted items of other China, Japan and Korea's big material manufactures’ priorities for developments.

3.Can be re-written to e-paper: Mainly focusing on environmental protection and energy saving for application demands, simply uses "thermal", and is able to have the stored or transferred images written on a soft LCD panel. It has memory function, as shown in Figure 4.2 that simply puts the memory item into the dedicated thermal-writing machine, and you may complete the image clearing and writing process at one time. It has the advantage of repeated uses. At the same time, the thermal writing head size is small with low power consumption, no need for an additional image removal process where the production cost is low and it is easy for mass production.

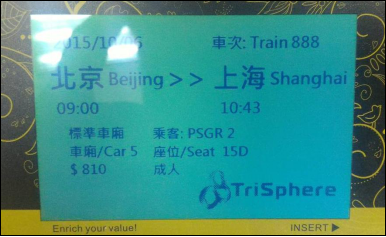

Figure 4.2 Transparent conductive polymer film in the application of rewritable e-paper

4.Projected capacitive touch panels will replace ITO materials. As the projected capacitive touch panel has the advantages of multi-point touch, it has become the first choice for touch solutions of electronic products in recent years. The key transparent conductive film’s surface resistance and transmittance specifications have been upgraded accordingly in addition to the requirements of patterning, in which the key transparent in addition to the requirement of patterning. The surface resistance of conductive polymer ink developed by TriSphere Innovation can reach 150 ohm/sq @ T = 86-87% on the PET substrate. As to the electrode patterning technology, it may reach no etching, low reflection and high contrast effects with de-function etching solution.

Functional film products
High temperature protective film

  • description：
  1. Thickness, width and packaging methods can be adjusted according to customer requirements
  2. A variety of specifications of initial adhesive forces and post-baking adhesive forces are available for customers’ choices according to the demands.
  3. Is of PU plastic category
  4. No deformation, residual adhesive, white mist, and so forth after the environmental tests.
  • Applications：
  1. Glass touch industry, hot-press attachment protection

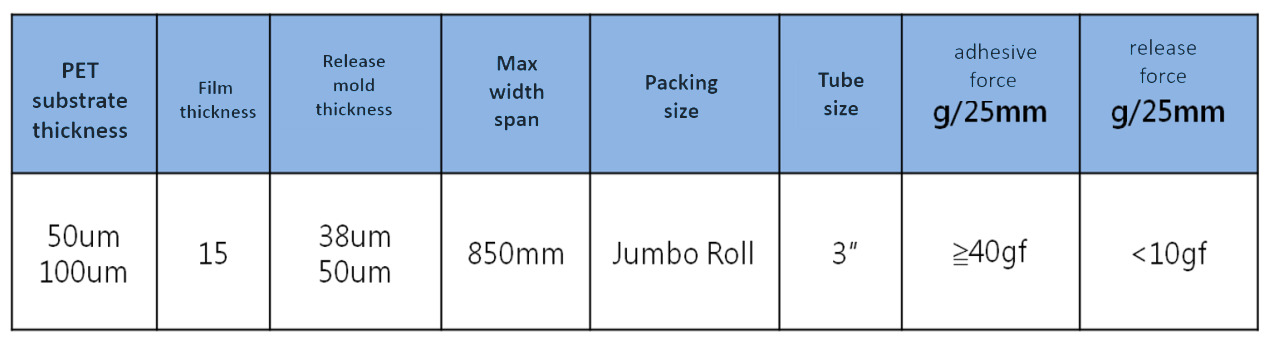

Universal temperature protection film

  • Descriptions：
  1. Thickness, width and packaging methods can be adjusted according to customer requirements.
  2. A variety of specifications of initial adhesive forces are available for customers’ choices according to the demands. If the adhesive forces are not of ordinary specs, that can be handled with additional development projects.
  3. Is of PU plastic category
  4. No deformation, residual adhesive, white mist, and so forth after the environmental tests.
  • Applications：
  1. Glass touch industry, protections for in-process or shipping of glass panels

Anti-hydrofluoric acid protective film

  • Descriptions：
  1. Thickness, width and packaging methods can be adjusted according to customer requirements.
  2. The adhesive forces can be adjusted according to customers’ production process requirements.
  3. In the PU acrylic plastic category
  4. After acid etching, it is not discolored
  5. Acid etching test conditions, hydrofluoric acid concentration of 25%, temperature 38 ° C, acid-resistant time of 60 min. test substrate, 2mm glass
  6. Substrates can be converted to PO based materials according to customer requirements
  • Applications：
  1. Glass outer plastic molding, glass thinning, glass secondary/third strengthening, etc.

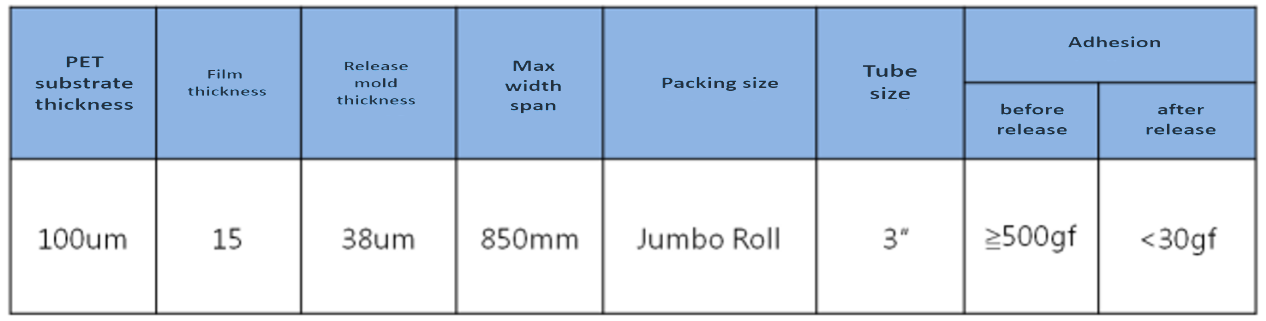

UV release protective film

  • Descriptions：
  1. Thickness, width and packaging methods can be adjusted according to customer requirements
  2. Post UV conditions: ＞500mj/cm2，test substrate, 2mm glass
  3. The adhesive forces can be adjusted according to customers’ production process requirements.
  4. The plastic material is of PU acrylic category
  • Applications：
  1. Protective film in the touch process, protective film for wafer cutting, etc.

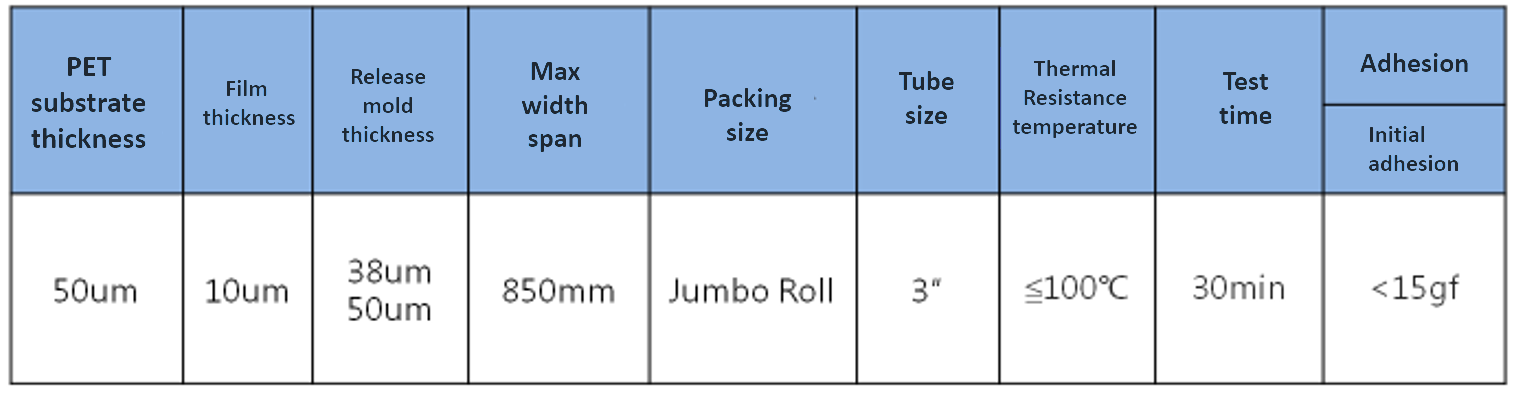

Thermal release protective film

  • Descriptions：
  1. Thickness, width and packaging methods can be adjusted according to customer industry requirements
  2. Thermal release conditions: 150 ℃ 30min, test substrate, SUS steel plate
  3. The adhesive forces can be adjusted according to customers’ production process requirements.
  4. The plastic material is of PU acrylic category
  • Applications：
  1. Protective film in the touch process, protective film for wafer cutting, etc.

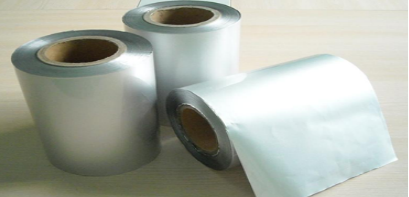

Aluminum-Plastic Film

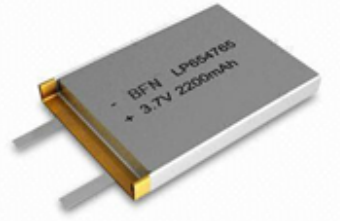

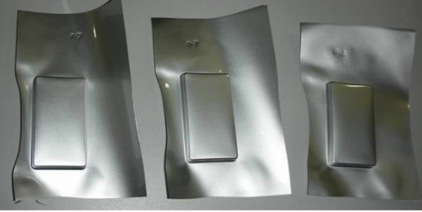

Applied in the soft package material used in lithium polymer battery packaging. It has good press formability, heat sealing strength and resistance characteristics to electrolyte

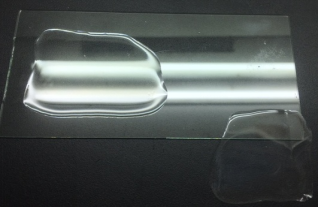

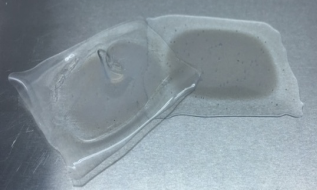

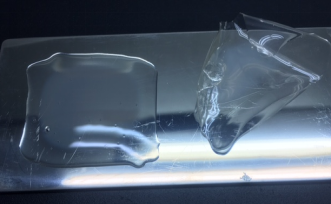

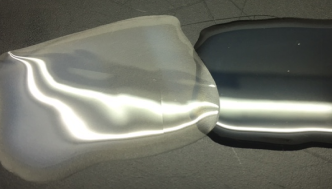

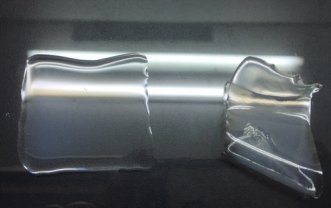

Water-based peelable plastic

To spray or make with screen printing, etc. on a variety of substrates for sheltering purpose. The film can be coated at room temperature.

Can withstand high temperature processing with no cracking, and can be easily removed without residue.

Uses water as the main solvent, which conforms even more to environmental regulations.

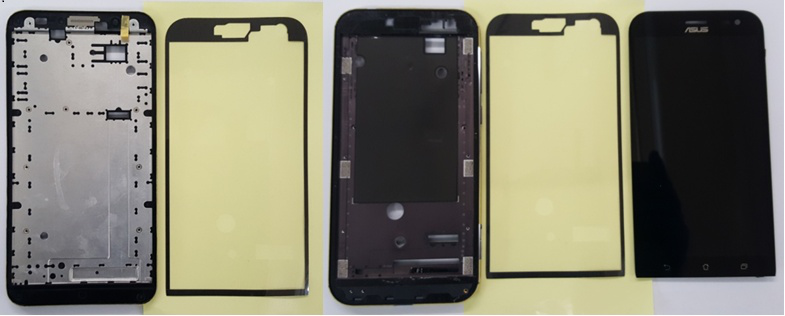

Release double-sided adhesive tape

To use for pasting work piece side frames. The initial adhesive force can be up to 2kg to secure the workpiece tightly. This product features re-workability so that the pasted tape can be smoothly taken off without damaging the workpiece after heating up to 100 degrees.

High temperature protective film and universal protection

  • High temperature resistant film：
  1. PU material
  2. Put a coating onto the PET base film to isolate the PET high temperature powder coating, at the same time proceed with the material pretreatment, and achieve low expansion and contraction product specification requirements
  3. Suitable for high-temperature ITO film calcining process
  4. May adjust for different matches according to the customer materials and processes.
  5. Corresponding products are available for process temperature 150 ℃-200 ℃
  • Universal protective film：
  1. PU material
  2. 2.Apply an adhesive which meets the requirements onto the PET base film
  3. Applicable to the use of properties at room temperature
  4. With features of low viscosity, anti-static, high exhaust and scratch-resistant

Acid-proof protective film

  • Acid-proof protective film：
  1. PU material
  2. Puts a hydrofluoric acid-resistant adhesive onto the PET and PO-based films
  3. Suitable for glass chemical cutting and glass chemical strengthening process
  • Solar release adhesive - Acid-proof protective film：
  1. PU-Acrylic material
  2. Apply a light-sensitive, hydrofluoric acid-resistant adhesive to the PET base film
  3. Suitable for glass chemical cutting and glass chemical strengthening process
  4. suitable for thin glass
  • Thermal release adhesive - acid resistant protective film：
  1. PU-Acrylic material
  2. Apply thermal-reaction and hydrofluoric acid-resistant adhesive to the PET base film
  3. Suitable for glass chemical cutting and glass chemical strengthening process
  4. Suitable for thin glass
  5. Suitable for post-enhancement glass which needs ink printing process of thermal baking
  • Glass triple strength protective film：
  1. PU-Acrylic material
  2. Apply photo-reactive and hydrofluoric acid-resistant adhesive onto the PO-based film
  3. 3.Suitable for glass chemical cutting and glass chemical strengthening process
  4. Suitable for post-enhancement glass, need to apply glue for triple strength process.

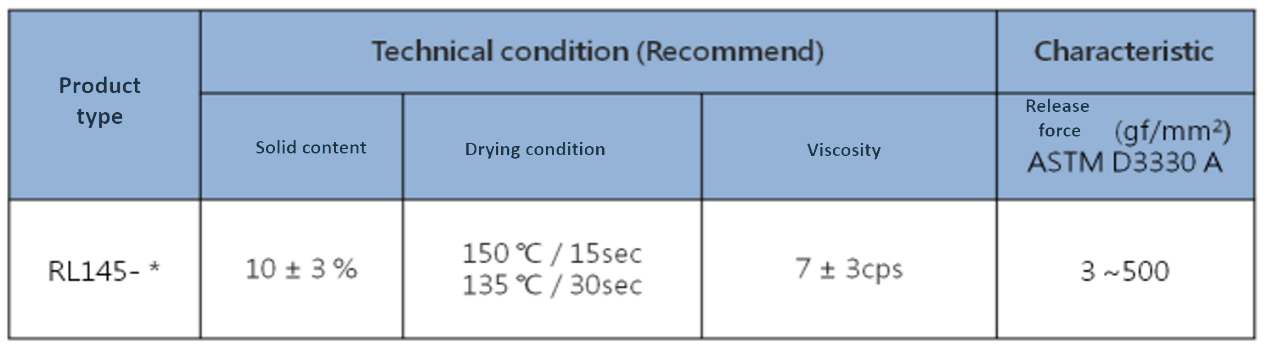

Special (ultra-light/heavy) release agent (film)

  • Descriptions：
  1. Release force can be adjusted according to customer requirements
  2. Residual adhesion force of 90% or more
  3. No need for room temperature curing after coating
  4. Uses a Melamine-based resin system
  5. Release stability is equivalent to Dow Corning materials
  6. Test by using Nitto-31B tape, and place the specimen under a load of 20 g/cm2 for 24 hours
  7. Universal tensile machine (direction 180 °, speed 300mm /min) for releasing force test
  8. Ultra-light release for ceramic coating (MLCC), graphene conductive coating

Solar solidification-typed Hard Coat

Hardness test substrate is 1mm glass

Hardness can be adjusted according to customer’s customization requirements

Adhesive Agent

Process capability: precision coating method
